How Cathode Materials Supercharge Your EV’s Performance

Cathode materials are vital to lithium-ion batteries, serving as the positive electrode. Composed of lithium and metal oxides like cobalt, nickel, manganese, or iron, they store and release lithium ions during charge and discharge cycles. The chosen material significantly impacts a battery’s energy density, power, lifespan, safety, and cost.

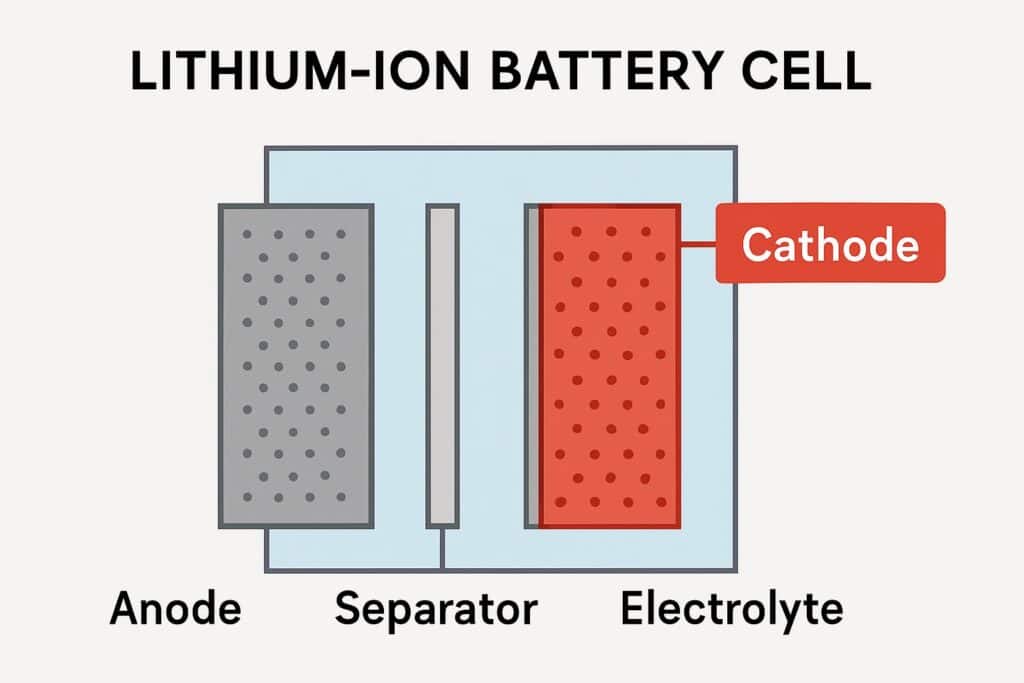

What Exactly is a Cathode in an EV Battery?

Electric vehicle (EV) batteries work by moving tiny charged particles called lithium ions. The anode and the cathode are the two components through which these ions move. A material called a separator keeps these two parts apart. The electrodes are soaked in an electrolyte, which is a liquid or solid that facilitates ion movement.

When you charge your EV, lithium ions move from the cathode. They go through the electrolyte and settle into the anode. You can think of the anode as a temporary parking spot for these ions. When you are driving, the process reverses. The lithium ions leave the anode. They travel back through the electrolyte. They then return to the cathode, their “home.” These ion movements produce an electric current. That current powers your car’s motor.

The cathode is essentially the “home base” for lithium ions. This is where they are when the battery is charged and ready to give power. The material used for this “home base” really affects things. It determines how many ions it can hold. It also impacts how easily ions move in and out. And it affects how stable the structure stays over time. That’s why picking the right cathode material is so important for how well a battery performs.

How the Cathode Drives EV Performance

The cathode material is very important for an EV’s abilities. It changes how your EV performs in key areas:

1. Energy Density (Your Driving Range)

This is the big one for many drivers – how far can you go on a single charge? Energy density, which is typically expressed in Watt-hours per kilogram, Wh/kg, or per liter, Wh/L, quantifies how much energy a battery can store in relation to its size or weight. The main element influencing this is the cathode material. Some materials can pack in more lithium ions, leading directly to higher energy density and, consequently, a longer driving range for your EV.

2. Power Density (Your Acceleration)

Ever feel that instant torque when you press the accelerator in an EV? This can be attributed to the battery’s high power density, which is expressed in Watts per kilogram (W/kg) or liter (W/L). The cathode’s structure and chemistry influence how fast lithium ions can move in and out. A cathode that allows rapid ion movement contributes to higher power density, giving your car that satisfying zip.

3. Lifespan (Battery Durability)

We all want our EV batteries to last a long time. Battery lifespan, often measured in charge/discharge cycles or years, depends heavily on how well the cathode material holds up over repeated use. Some materials are more stable and resist degradation better than others, meaning they maintain their capacity to store energy for more cycles. Cathode stability is key to a long-lasting, reliable battery.

4. Safety (Thermal Stability)

Battery safety is paramount. Cathode materials react differently to high temperatures or stress. Compared to others, some are naturally more stable and less likely to overheat (thermal runaway). Manufacturers carefully select cathode chemistries with strong safety profiles, especially considering the large size of EV battery packs.

5. Cost (EV Affordability)

Why are EVs still sometimes more expensive upfront than gasoline cars? The battery is a major reason, and cathode materials account for a significant chunk of that battery cost, often over 40%! Because materials like cobalt are costly and subject to price fluctuations, producers must look for more affordable, readily available substitutes like iron or manganese without significantly compromising performance.

Common Types of Cathode Materials Explained

Let’s explore the main types of cathode materials used in today’s EVs. Each type has a unique mix of performance, cost, and safety features.

1. LCO (Lithium Cobalt Oxide – LiCoO2)

This was one of the first commercially successful cathode materials, powering early laptops and smartphones. It packs a lot of energy into a small space (high energy density).

However, cobalt is expensive, its mining raises ethical questions, and LCO isn’t the safest or longest-lasting option for the demands of an EV. You won’t typically find pure LCO in modern electric cars.

2. LFP (Lithium Iron Phosphate – LiFePO4)

This one’s a rising star! LFP replaces expensive cobalt or nickel with abundant and cheap iron and phosphate. Its key strengths are excellent safety, long cycle life (it can handle many charge/discharge cycles), and lower cost.

Historically, its downside was lower energy density (meaning less range compared to others). However, LFP technology is rapidly improving, making it a fantastic choice for standard-range EVs or applications where longevity and safety are top priorities. Many manufacturers are increasingly adopting LFP.

3. NMC (Lithium Nickel Manganese Cobalt Oxide – LiNiMnCoO2)

For a long time, NMC has been the go-to cathode for many EVs, especially those aiming for longer range. It balances energy density (good range), power density (good acceleration), and decent lifespan.

‘NMC’ is derived from the metals that are utilized: cobalt, manganese, and nickel. Manufacturers can tweak the ratios of these metals. For example, you might hear about NMC 811, which means eight parts Nickel, 1 part Manganese, and 1 part Cobalt. There’s a big push to use more nickel (which boosts energy density) and less cobalt (to reduce cost and ethical concerns).

4. NCA (Lithium Nickel Cobalt Aluminum Oxide – LiNiCoAlO2)

Like NMC, NCA offers high energy and power density, making it suitable for long-range, high-performance EVs (Tesla has famously used NCA). It uses aluminum as a stabilizing element instead of manganese. Like NMC, it relies on nickel and cobalt, facing similar cost and supply chain challenges, driving research into reducing cobalt content.

5. LMO (Lithium Manganese Oxide – LiMn2O4)

Manganese, which is more accessible and less expensive than cobalt, is used by LMO. It offers good power output and safety. However, its energy density and lifespan aren’t as high as NMC or NCA. It’s sometimes blended with NMC to improve performance or reduce cost.

Choosing between these often involves trade-offs. Carmakers select the cathode chemistry that best matches the vehicle’s intended use and price point.

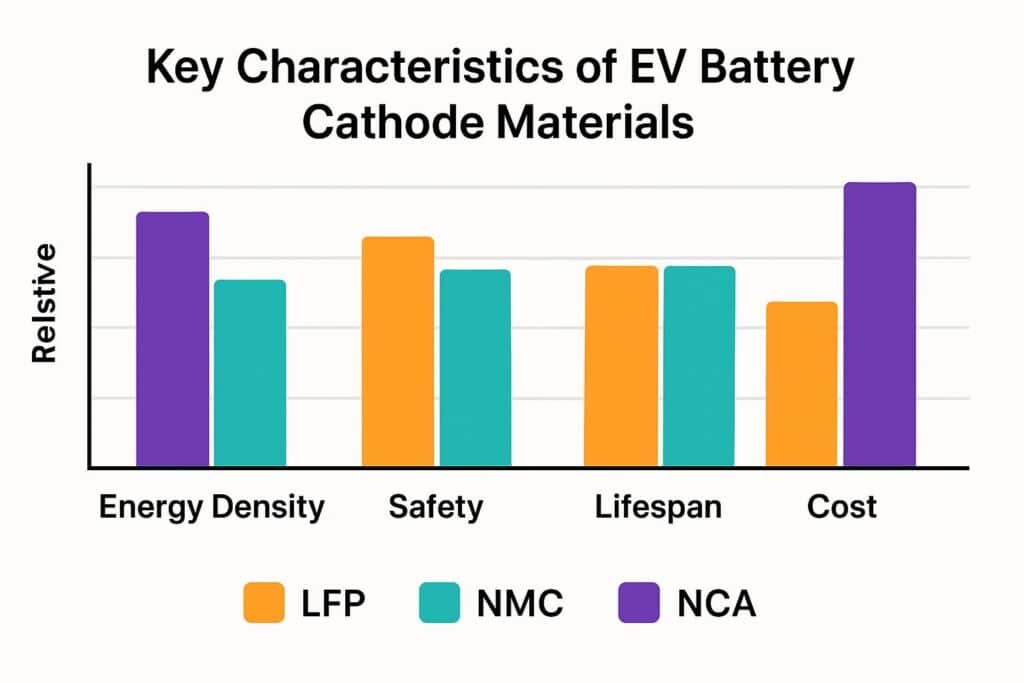

Comparing Cathode Chemistries

As you can see, there’s no single ‘best’ cathode—it’s about finding the right fit for the job. An LFP battery might be perfect for your daily commuter car, while an NMC or NCA might be preferred for a long-range tourer.

The Future of Charging: Next-Gen Cathodes

The world of battery cathodes is constantly evolving. Researchers and companies are working hard to push the boundaries, aiming for cheaper, safer batteries that last longer, and pack even more energy. Here’s a glimpse of what’s coming:

1. Higher Nickel, Lower Cobalt

The trend in NMC and NCA is clear: reduce expensive and ethically challenging cobalt while increasing energy-boosting nickel (like NMC 811, 9.5.5, or even higher nickel ratios). This boosts range but requires careful engineering to maintain stability and lifespan.

2. Cobalt-Free Champions

The ultimate objective of many is to completely eradicate cobalt.. Advanced LFP chemistries (like LMFP, adding manganese) are improving energy density. Other promising cobalt-free options include high-manganese cathodes (LNMO), which offer high voltage but face stability challenges.

3. Solid-State Compatibility

The move towards all-solid-state batteries (which replace the liquid electrolyte with a solid material for potentially better safety and energy density) presents new challenges and opportunities for cathodes. Traditional oxide cathodes sometimes struggle to work efficiently with solid electrolytes. This is driving research into new cathode materials designed specifically for solid-state systems. As researcher Dr. Hailong Chen at Georgia Tech highlighted regarding their iron chloride (FeCl3) discovery, finding low-cost, compatible materials “could be a game-changer for affordability and sustainability,” potentially costing only 1-2% of current materials while offering similar storage.

We’ll likely see a mix of these technologies emerge, offering even more tailored battery solutions for different needs.

Practical Advice for EV Drivers

Understanding a bit about cathodes isn’t just for engineers; it can actually be helpful for you as an EV owner or potential buyer:

1. Know Your Battery Type

When comparing EVs, consider whether the manufacturer specifies the battery chemistry (e.g., LFP or NMC). This can give you clues about its strengths. LFP generally means excellent longevity and safety, potentially at the cost of some range compared to NMC/NCA in the same size pack. NMC/NCA usually offers a higher range but might require more careful management.

2. Charging Habits

Different chemistries can have slightly different optimal charging routines. For instance, LFP batteries generally tolerate being charged to 100% more regularly than many NMC/NCA batteries, which often prefer staying between 20% and 80% for maximum longevity. Always follow your car manufacturer’s specific recommendations, but knowing the chemistry can provide context.

3. Match To Your Needs

If you primarily need a car for city driving and daily commutes, an EV with a cost-effective, long-lasting LFP battery might be perfect. If maximum range for long road trips is your priority, a model with an energy-dense NMC or NCA battery might be more suitable, even if it comes at a higher price point.

4. Don’t Sweat The Small Stuff

While the chemistry matters, remember that manufacturers build sophisticated battery management systems (BMS) to protect the battery and optimize its performance, regardless of the specific cathode used. Focus on the overall range, charging speed, warranty, and features that meet your needs.

Conclusion: The Powerhouse Within

The cathode might be hidden deep inside your EV’s battery pack, but its influence is everywhere – from the miles you can drive to the thrill of acceleration, the battery’s lifespan, and the car’s price tag. We’ve seen that materials like LFP offer incredible safety and value, while NMC and NCA push the boundaries of energy density for longer range. And the future looks even brighter, with researchers actively developing next-generation cathodes that promise to be cheaper, safer, and more sustainable, like the exciting iron-based chemistries being explored.

As EV technology continues to advance, the humble cathode will remain at the heart of innovation. Understanding its role helps us appreciate the complex science powering our electric journeys and empowers us to make more informed choices about the vehicles that are shaping a cleaner future for transportation.
