What Is Car Battery Management System?
The Car Battery Management System (BMS) keeps electric vehicle batteries safe and working well. It handles and protects the whole battery pack to provide the best possible performance and make the battery last longer.
What Is A Car Battery Management System (BMS)?
An intelligent system manages an electric vehicle’s (EV) battery pack. The system is called a battery management system (BMS). The BMS closely monitors many battery functions. It records voltage levels. It controls battery temperatures. It manages how power moves within the battery. The BMS makes sure all battery cells work safely. It prevents overcharging, over-discharging, and overheating. EV batteries would have serious performance problems without a BMS. EV batteries also create safety risks without a battery management system (BMS).

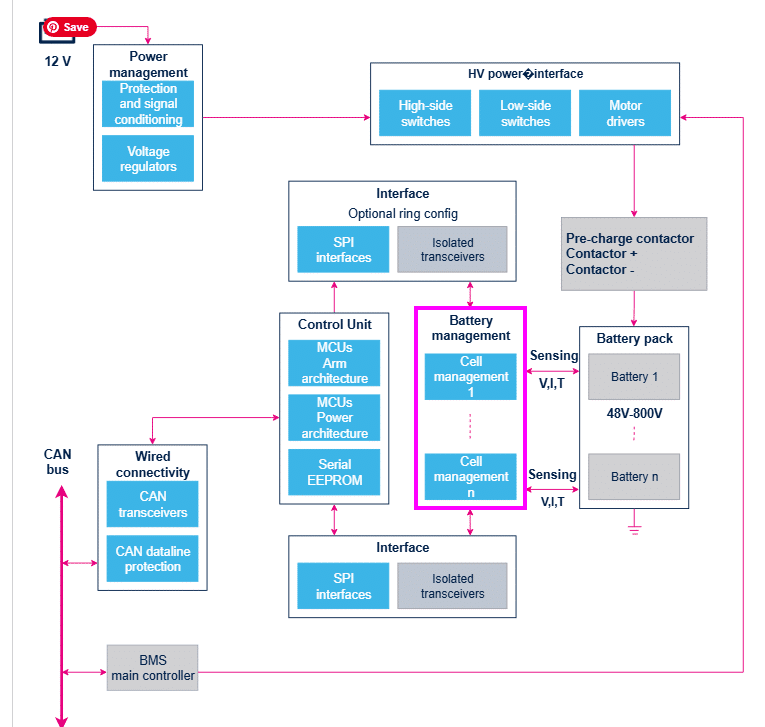

What Are The Components Of A Battery Management System?
The battery management system relies on key parts to make the battery pack last longer. The Battery Control Unit (BCU) acts as the system’s brain. It gathers information and makes decisions quickly. Battery sensors constantly measure everyday battery details, such as voltage, temperature, and current. They find any problems. The cooling system controls too much heat from the battery. It uses air or liquid to cool the battery pack. The communication system tells the car’s computer about the battery’s condition. This lets drivers watch the battery’s health as they drive.
Impact of BMS on Battery Performance
An EV battery’s Management System (BMS) controls its performance. The BMS ensures efficient power use and maximum range. It regulates charging and discharging for better energy efficiency. The system manages charging speed based on temperature and battery health. This protects the battery and ensures long-term performance.
How Does BMS Protect The EV Battery?
The battery management system (BMS) includes a specialized part. This part focuses on protecting the battery from overcharging and undercharging, which can damage the battery’s lifespan. The BMS works hard to prevent those issues. The system controls the charging speed to stop overcharging or undercharging. Also, the BMS monitors battery temperature. If the battery gets too hot, the charging system stops. It activates cooling systems to lower the temperature. The BMS also protects against short circuits. Short circuits often damage batteries. The system watches for uneven current flow. When problems occur, the BMS disconnects the battery.
Types Of Battery Management Systems?
1. Centralized BMS
A centralized battery management system uses a single control unit to manage the entire battery pack. This setup simplifies the system architecture but offers less flexibility in handling individual battery modules.
2. Distributed BMS
Each battery module is equipped with its controller in a distributed Battery Management System (BMS). This configuration enhances the system’s scalability and fault tolerance, making it ideal for larger applications where reliability is crucial.
3. Modular BMS
A modular BMS combines features of both centralized and distributed systems. It balances cost and efficiency, offering flexibility in managing larger electric vehicle battery packs and adapting quickly to varying power and capacity requirements.
How to Choose a BMS for Your EV?
Battery Type – Ensure the BMS is compatible with lithium-ion, LiFePO4, or solid-state batteries.
Scalability – Choose a system that can efficiently manage multiple battery modules.
Safety Features – Look for overcharge protection, temperature control, and short-circuit prevention.
Communication Protocols – CAN, I2C, and SPI are standard for real-time data exchange.
Energy Efficiency – A good BMS should optimize power usage and extend battery lifespan.
Best BMS For Electric Vehicles: Prices & Features
| BMS Brand | Price Range | Best For | Drawbacks |
|---|---|---|---|
| REC BMS | $200–500 | Small LiFePO4 setups | Limited cell count |
| Orion BMS | $2,000–5,000 | Racing EVs, commercial vehicles | Complex installation |
| Tesla BMS | N/A (Built-in) | Tesla owners | No third-party compatibility |
| Electrodacus | $100–200 | DIY solar/EV projects | Basic functionality |
| Texas Instruments (TI) | $500–2,000 | Custom designs, high precision | Requires integration |
| NXP Semiconductors | $1,000–3,000 | Automotive-grade applications | Higher cost |
| Analog Devices (ADI) | $1,500–4,000 | Cutting-edge projects | Premium pricing |
| Lithium Balance | $2,000–5,000 | Industrial and EV applications | Expensive |
| Eberspächer | $3,000–7,000 | OEM and hybrid vehicles | Very high cost |
What Is The Advantage Of BMS?
1. Extends Battery Life
Although completely draining an EV battery hurts its condition, the BMS prevents that from happening. The BMS also prevents overcharging. The system ensures that each cell within the battery charges and discharges at the same rate. This balanced process reduces wear and tear, extending the battery’s overall life.
2. Improves Safety
The battery Management System includes extra safety features. It monitors the battery’s temperature. The BMS also controls the battery’s voltage. It prevents short circuits. These features reduce the risk of overheating. They also lessen the chance of problems caused by too much electricity. The system avoids dangerous electrical flows. These protections lower the possibility of fires and explosions.
3. Enhances Energy Efficiency
Using the energy flow optimally allows a battery to work at its highest level. This reduces wasted energy and improves the performance of vehicles and other devices.
4. Enables Cell Balancing
The car battery Management System (BMS) maintains equal voltage across all battery cells. Equal voltage prevents weak cells from reducing overall battery performance. The BMS achieves this balance in two ways: it either uses passive energy loss or transfers energy between cells.
5. Provides Real-Time Monitoring and Diagnostics
The battery Management System (BMS) constantly monitors the battery’s voltage, charge level, and temperature. Because it tracks these things, the BMS can help prevent sudden failures. The system also allows for more frequent and planned battery upkeep.
6. Supports Fast Charging
Fast charging, unlike regular charging, can increase heat inside the battery. Higher heat can shorten the battery’s lifespan. A battery Management System (BMS) makes fast charging safer by reducing the charging speed. This reduction controls the heat produced during charging.
7. Enhances Vehicle Range and Performance
EV battery Management Systems (BMS) help electric vehicles travel farther. The systems ensure power goes where it is needed, reduce wasted power, improve vehicle start-up times, and enhance the vehicle’s driving performance.
8. Enables Remote Monitoring and Smart Integration
Newer battery Management Systems (BMS) connect automatically to cloud computers. People can then monitor the battery from far away. Wireless BMS (wBMS) and systems using artificial intelligence (AI) make more accurate predictions about battery health. These advanced systems also improve how people diagnose battery problems.
9. Reduces Maintenance Costs
A battery Management System (BMS) predicts when batteries will fail. By predicting failures, the BMS prevents unnecessary costs. People avoid spending money on replacing and fixing batteries. EV owners and industries with large battery systems save money over time.
10. Optimised Energy Systems
When solar and wind energy systems generate power, the Battery Management System (BMS) wisely shares battery resources. This efficient sharing of resources increases the system’s dependability. The BMS guarantees proper power, making renewable energy storage systems more trustworthy.
What Are The Disadvantages Of The Battery Management System?
A Battery Management System (BMS) offers many advantages but has some limitations. These drawbacks primarily relate to cost, complexity, and technical challenges in battery management.
1- High Cost
Battery Management Systems (BMS) significantly increase the total cost of the energy battery pack. The price of BMS is high because it is powered by artificial intelligence. Advanced wireless communication systems and predictive maintenance functions contribute to the elevated cost. Consequently, the price of electric vehicles (EVs) and energy storage systems increases.
2- Complex System Integration
A BMS has to be integrated with existing hardware and software components, which adds to the complexity. The system integration processes for new-generation batteries with new chemistries and designs require high customization. Installing a BMS into an EV, energy storage system, or industrial battery pack is possible but requires deep engineering knowledge.
3- Accuracy Limitations in Battery Monitoring
Battery Management Systems estimate battery health and charge level. However, these estimations sometimes contain errors. The systems calculate State of Charge (SoC) errors using voltage measurements, which predict battery life. Unfortunately, temperature and load changes affect the voltage readings, so they are not entirely accurate.
Furthermore, systems face estimation challenges for the State of Health (SoH). Predicting battery life remains difficult. Minor estimation errors lead to incorrect battery replacement decisions, and the systems struggle to provide completely accurate predictions.
4- Increased Energy Consumption
A BMS is also a power consumer—it monitors and manages the battery’s performance. While this energy drain, when analyzed on its own merit, is discrete and inconspicuous, combined with other systems, it can be detrimental to the battery’s overall efficiency, which is exceptionally inconvenient for small devices.
5- Cell Balancing Efficiency Issues
Both passive and active methods of balancing battery cells help maintain uniform charge levels within a specific range.
Modern Battery Management Systems waste energy due to passive balancing. There is no power control, and energy that cannot be stored during the charging process is wasted as heat.
Modern Battery Management, with active balancing, needs more elaborate circuits. Charging cells are more efficient, but they are also more expensive and add complexity to the system.
6- Temperature Sensitivity
Batteries overheat when temperature sensors malfunction. Faulty sensors provide incorrect readings about heat levels, causing the battery management system (BMS) to control the battery’s temperature inaccurately. Sensors, like other electronic devices, have limits. They sometimes stop working correctly. Very hot or icy weather can limit the sensors’ ability to operate. This limitation causes the BMS to make poor adjustments to the battery’s thermal conditions.
7- Dependency on Software and Firmware Updates
Numerous new-age BMS technologies rely on direct monitoring and firmware modifications.
Software and system errors can trigger an anomaly in the battery’s state estimation.
Systems that do require recalibration suffer from performance losses during the update.
8- Limited Performance in Aging Batteries
All batteries have their cycle lives; after this period, batteries self-discharge more and require servicing more frequently. Even with the presence of BMS, older battery cells still age unevenly and perform worse. The BMS has benefits in servicing an ageing battery, but it does not extend its usable capacity.
9- Difficult Repairs and Replacement
People usually replace a whole Battery Management System (BMS) unit when it fails rather than fixing specific issues. Battery systems without a BMS allow simple changes; however, systems with a BMS require specialists to examine the faults. The need for expert evaluation often makes repairs more expensive and causes more extended periods of inactivity for each problem.
Conclusion
A Battery Management System (BMS) improves an electric vehicle’s safety, efficiency, and lifetime. The system improves by stopping excessive charging, preventing high temperatures, and balancing individual battery cells. However, the expensive price, complicated installation, and limited accuracy boundaries limit the system’s use. We understand that despite the limitations, the Battery Management System remains essential for getting the best battery performance and enabling quick charging. The problems of high cost and complex technology will shape the future of car battery management systems in energy storage systems.
