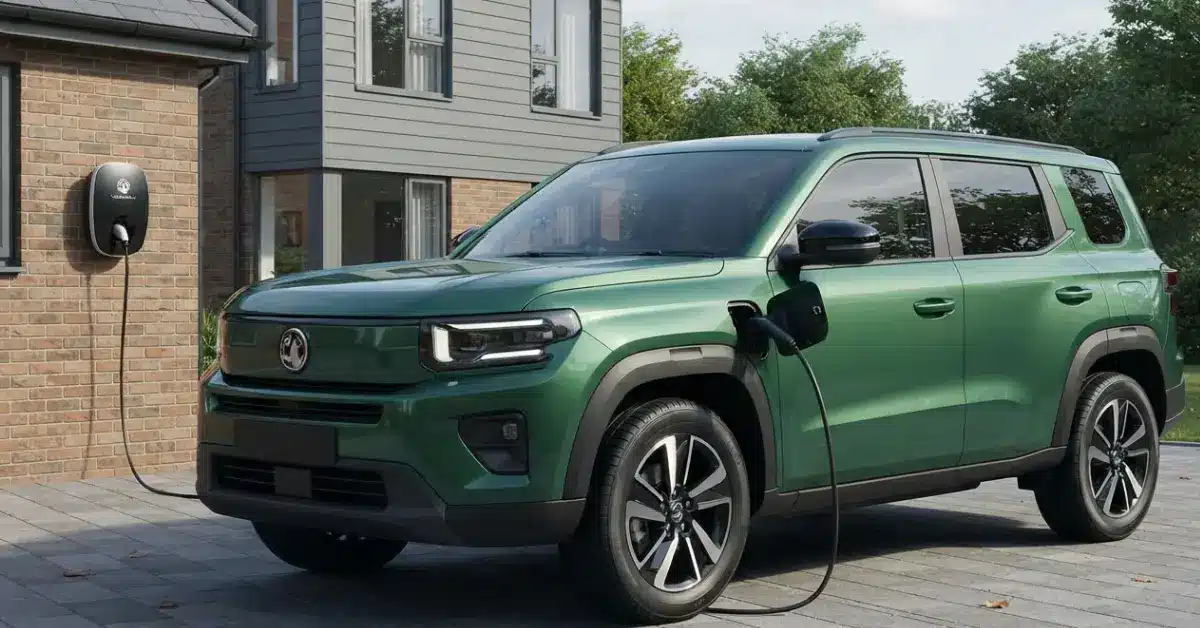

Vauxhall Frontera Electric Battery: Complete Guide
The Vauxhall Frontera Electric uses two LFP (lithium iron phosphate) battery sizes built on the low-cost Stellantis SC1 platform. The 44 kWh Standard Range battery delivers 186 miles of range. The 54 kWh Extended Range battery delivers 253 miles of range. Both range estimates follow WLTP, which is a standard test for measuring how far a vehicle can travel.
Both models peak at 100 kW for DC fast charging. This allows the battery to charge from 20% to 80% in about 26 to 28 minutes. Vauxhall includes an 11 kW onboard AC charger as a standard feature, which is rare for this price.
The Frontera Electric starts at £22,495 after a £1,500 grant. This makes it one of Britain’s most affordable electric family crossovers. Buyers can choose an optional seven-seat layout. This model shares the same SC1 platform as the Citroën ë-C3 and the Fiat Grande Panda Electric.
Vauxhall Frontera Electric Battery: Both Variants Compared
| Specification | Standard Range (44 kWh) | Extended Range (54 kWh) |
|---|---|---|
| Battery capacity | 44 kWh LFP | 54 kWh LFP |
| Architecture | 400V (SC1 Smart Car platform) | 400V (SC1 Smart Car platform) |
| WLTP range | 186 miles | 253 miles |
| Motor power | 83 kW (111 hp) FWD | 83 kW (111 hp) FWD |
| 0–62 mph | 12.1 sec | 13.0 sec |
| Top speed | 89 mph | 89 mph |
| Peak DC rate | 100 kW | 100 kW |
| 20–80% DC time | ~26 min | ~28 min |
| AC onboard charger | 11 kW (standard) | 11 kW (standard) |
| Level 2 (7.4 kW) full charge | ~7 hours | ~8.5 hours |
| 7-seat option | Yes (optional) | Yes (optional) |
| Starting price (UK, after £1,500 grant) | £22,495 | £25,995 |
SC1 Platform: Same as the Citroën ë-C3 and Fiat Grande Panda
The Frontera Electric uses the same Stellantis Smart Car (SC1) platform as the Citroën ë-C3 and Fiat Grande Panda Electric. This platform features a taller body like an SUV and offers an optional seven-seat layout. The car uses LFP battery chemistry, which allows you to charge to 100% every day. This provides a great practical benefit for owners. All three cars use the same charging hardware, and the Frontera reaches speeds of 100 kW when using DC fast charging.
The Frontera Electric includes an 11 kW AC onboard charger at no extra cost. This is a great deal because the rival Citroën ë-C3 Aircross charges £360 for this same feature. If you use an 11 kW public charger, the car gains about 90 miles of range every hour and fills up in roughly 5 hours. Most owners will use a 7.4 kW home wallbox, which completes a full charge in 7 to 8.5 hours.
Seven Seats: The Frontera’s Unique Proposition
The Frontera’s standout family advantage is an optional seven-seat configuration. Third-row seats fold flat when not needed. For families who need occasional seven-passenger capacity but don’t want a large, expensive electric SUV, the Frontera’s seven-seat option is a unique value proposition. No other sub-£30,000 electric car offers this in the UK market. The third row is child-sized — best suited to small children rather than adults on regular journeys.
Frontera Electric Charging Speeds
| Method | Power | Standard (44 kWh) | Extended (54 kWh) |
|---|---|---|---|
| Level 2 (7.4 kW) | 7.4 kW | ~7 hours full | ~8.5 hours full |
| Level 2 (11 kW) | 11 kW | ~5 hours full | ~6 hours full |
| DC Fast (100 kW peak) | 100 kW | ~26 min (20–80%) | ~28 min (20–80%) |
Real-World Range
- 44 kWh, urban commuting: Approximately 150–180 miles — 186-mile WLTP is achievable at low urban speeds
- 54 kWh Extended, mild weather mixed: Approximately 190–225 miles — 253-mile WLTP in favorable conditions
- Cold weather (no heat pump on either): Approximately 130–170 miles — no heat pump on any Frontera Electric trim reduces winter range meaningfully
- LFP daily charging advantage: 100% charging daily is recommended — LFP chemistry supports this without degradation
No Heat Pump: Same Limitation as Stellantis SC1 Siblings
The Frontera Electric has no heat pump — mirroring the Citroën ë-C3 and Fiat Grande Panda Electric, both of which share the same SC1 platform. Cold-weather range drops approximately 25–35% below mild-weather figures. In the UK and northern European climates, this is the Frontera’s main practical limitation, alongside its modest range. The 44 kWh variant’s 186-mile WLTP range can drop below 130 miles in cold winter conditions. The 54 kWh Extended Range is the stronger choice for buyers who regularly encounter cold weather.
Battery Warranty
Vauxhall covers the Frontera battery with an 8-year / 100,000-mile warranty. The vehicle warranty is 3 years / 60,000 miles — standard for Vauxhall but below Kia’s 7-year benchmark. The Electric All In package includes 10,000 miles of free home charging, 8 years’ roadside assistance, and £500 towards a home wallbox. LFP chemistry’s inherent longevity means degradation under the warranty period is expected to be low.
Frontera Electric vs Competitors: Family Budget EV Comparison
| Model | Battery | WLTP Range | 7 Seats? | DC Rate | Starting Price (UK, after grant) |
|---|---|---|---|---|---|
| Vauxhall Frontera Electric (54 kWh ER) | 54 kWh LFP | 253 miles | Yes (optional) | 100 kW | £25,995 |
| Citroën ë-C3 Aircross (54 kWh) | ~54 kWh LFP | 249 miles | No | 100 kW | ~£25,495 |
| Fiat Grande Panda Electric | 44 kWh LFP | 199 miles | No | 100 kW | ~£20,995 |
| Hyundai Inster LR | 49 kWh NMC | 221 miles | No | 120 kW | ~£27,000 |
Charging Tips for Vauxhall Frontera Electric Owners
- Charge to 100% daily: LFP chemistry benefits from and supports regular full charges — this keeps BMS calibration accurate for consistent range display
- Choose Extended Range (54 kWh) for better winter use: The 67-mile extra range buffer is especially valuable in winter when both variants lose range without a heat pump
- Use the 11 kW AC charger at public chargers: The Frontera’s standard 11 kW onboard charger is faster than most rivals — use three-phase AC public chargers to add 90 miles per hour when available
- Claim the Electric All In package: The 10,000 miles of free home charging and £500 wallbox contribution reduce the effective cost of ownership in the first year
Conclusion
The Vauxhall Frontera Electric offers a 44- or 54-kWh LFP battery in an affordable family crossover. You can even choose a seven-seat layout. This combination is unique for a car under £30,000 in the UK. LFP refers to Lithium Iron Phosphate, a type of battery known for its durability and cost-effectiveness.
If you are comparing this car to similar Citroën or Fiat models, read our Citroën ë-C3 and Fiat Grande Panda battery guides. The car lacks a heat pump and has modest power, but these trade-offs help keep the price low.
For families who need extra seats, the 2026 Frontera Electric is a great choice. Its battery setup makes it hard to ignore.
