Volvo EX60 Battery: Complete Guide
The Volvo EX60 comes with three battery sizes: 80 kWh (P6), 91 kWh (P10), and 112 kWh (P12). These batteries use NMC technology on an 800V SPA3 platform. The P6 model can travel up to 385 miles on a single charge. The top-tier P12 AWD model reaches up to 503 miles. This is the longest range of any Volvo, beating its sibling, the Volvo EC40.
You can charge the battery quickly using a DC fast charger. Charging speeds reach 320-370 kW. This allows the car to charge from 10% to 80% in just 18 to 19 minutes. At a 400 kW station, you can add 170 miles of range in only 10 minutes.
Volvo started building these cars in Torslanda, Sweden, on April 22, 2026. Deliveries will start in the U.S. in the summer of 2026. The price will start at about $52,000.
Volvo EX60 Battery: Full Specs by Powertrain
| Powertrain | Battery (Usable) | Architecture | EPA Range (est.) | WLTP Range | Power | 0–60 mph | Peak DC Rate |
|---|---|---|---|---|---|---|---|
| P6 (RWD) | 80 kWh NMC | 800V SPA3 | ~310 miles | 385 miles | 369 hp | 5.7 sec | 320 kW |
| P10 AWD | 91 kWh NMC | 800V SPA3 | ~320 miles | 410 miles | 503 hp | 4.7 sec | 370 kW |
| P12 AWD | 112 kWh NMC | 800V SPA3 | ~400 miles | 503 miles | 670 hp | 3.8 sec | 370 kW |
| P10 Cross Country AWD | 91 kWh NMC | 800V SPA3 | ~300 miles | ~395 miles | 503 hp | 4.7 sec | 370 kW |

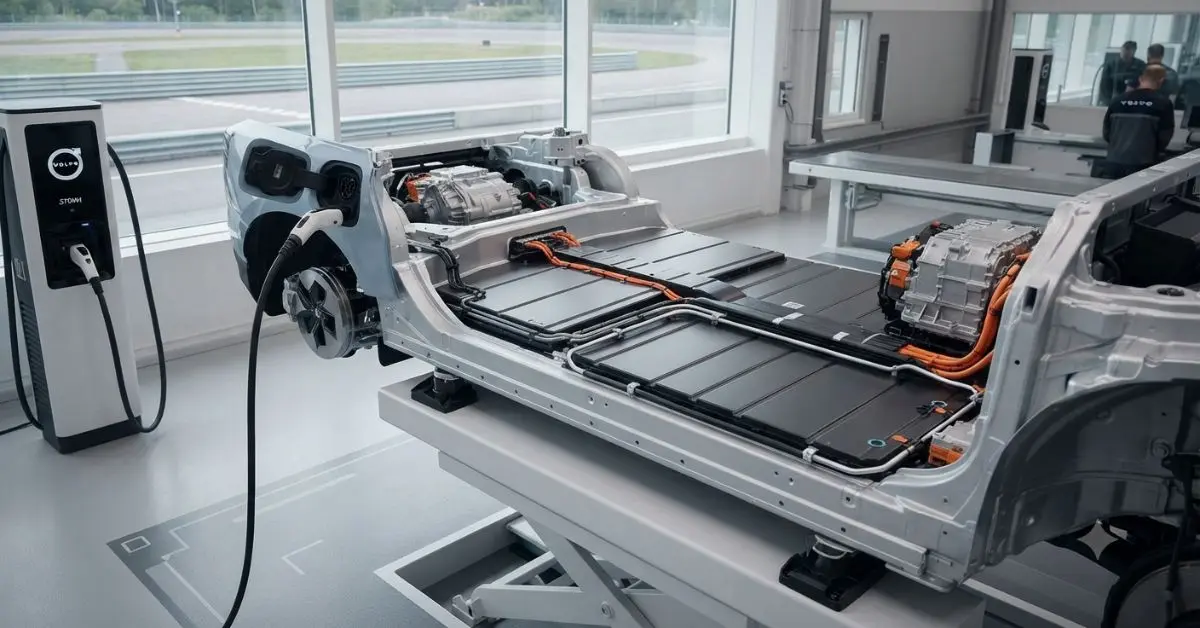

SPA3 and Cell-to-Body: Volvo’s Engineering Breakthrough
The EX60 is Volvo’s first car built on the new SPA3 platform. SPA3 uses a process called megacasting. This method produces large, single-piece aluminum parts that replace dozens of smaller stamped parts. Megacasting reduces the car’s weight, strengthens the frame, and helps Volvo build cars faster.
Volvo also uses a cell-to-body (CTB) design for the first time in the EX60. Instead of putting battery cells in a separate box, the team builds them directly into the floor. This design makes the battery act as a main part of the car’s frame. This makes the car much stiffer, which helps create the smooth ride that reviewers at Electrifying.com enjoy.
The P10 and P12 models feature an active chassis system. Sensors monitor the road 500 times per second to adjust the suspension’s feel. This system provides a luxury ride quality that feels better than the EX90 and competes well with the BMW iX3.
P12 Battery: 503 Miles WLTP — Volvo’s Range Record
The new P12 battery has a usable capacity of 112 kWh. It offers a 503-mile WLTP range, the longest of any Volvo electric vehicle. For comparison, the current EX90 uses a 106-kWh battery to deliver about 350 miles on the EPA test.
The P12 improves efficiency through the new SPA3 platform. This platform lowers wind resistance, while the Cell-to-Body (CTB) structure increases rigidity to stop energy loss. The car also uses better 800V power electronics. These changes help the P12 reach an estimated 400 miles on the stricter American EPA test, setting a new record for Volvo.
370 kW Charging: 170 Miles in 10 Minutes
The P10 and P12 support a maximum DC charging rate of 370 kW. This is one of the fastest rates for any production luxury SUV. A 400 kW station adds about 170 miles of range in just 10 minutes.
All models charge from 10% to 80% in 18 to 19 minutes. At home, the standard 19.2 kW onboard AC charger fills the battery in 4 to 6 hours. European models use a 22 kW charger.
Drivers use Volvo Plug & Charge at compatible stations to start charging instantly. This system automatically authenticates the vehicle without requiring an app or a card.
Native NACS: First Volvo with NACS Port
The EX60 is Volvo’s first vehicle with a native NACS (SAE J3400) charging port. Tesla Supercharger access is fully enabled — no adapter required. The charge port sits on the rear-left (driver’s side) — in the same position as in Tesla vehicles. A CCS1-to-NACS adapter is included for compatibility with Electrify America, EVgo, and ChargePoint stations. Volvo joined Tesla’s NACS partnership in October 2024, making the EX60 the first to benefit.
EX60 Charging Speeds
| Method | Power | P6 (80 kWh) | P10 (91 kWh) | P12 (112 kWh) |
|---|---|---|---|---|
| Level 2 AC (19.2 kW US) | 19.2 kW | ~5 hours full | ~5.5 hours full | ~7 hours full |
| DC Fast (320 kW, P6) | 320 kW | ~18 min (10–80%) | — | — |
| DC Fast (370 kW, P10/P12) | 370 kW | — | ~18 min (10–80%) | ~19 min (10–80%) |
Battery Warranty
Volvo protects the EX60 battery with an 8-year or 160,000 km warranty. This covers manufacturing defects and situations where the battery drops below 70% of its original capacity. This mileage limit is more generous than the 161,000 km limit most competitors offer.
The battery loses about 1.5% to 2% of its charge capacity each year. The Cell-to-Body (CTB) design makes the battery a structural part of the car. Because of this, replacing the battery is more difficult than replacing modular packs in other cars. However, Volvo’s 8-year warranty significantly lowers this risk for owners.
EX60 vs Competitors: 2026 Premium Electric SUV Comparison
| Model | Battery (Usable) | WLTP / EPA Range | Peak DC Rate | Starting Price |
|---|---|---|---|---|
| Volvo EX60 P6 (2026) | 80 kWh NMC | 385 mi WLTP / ~310 mi EPA | 320 kW | ~$52,000 |
| BMW iX3 50 xDrive (2026) | ~98 kWh NMC | 456–500 mi WLTP | 400 kW | $61,500 |
| Audi Q6 e-tron Performance | 94.9 kWh NMC | 391 mi WLTP | 270 kW | ~$65,900 |
| Mercedes GLC Electric (est.) | ~85 kWh NMC | ~350 mi WLTP (est.) | ~150 kW (est.) | ~$65,000 |
Charging Tips for Volvo EX60 Owners
- Set daily charge limit to 80%: NMC benefits significantly — 80% of 80 kWh (P6) provides ~64 kWh, covering 240+ miles; reserve 100% for road trips
- Use navigation for preconditioning: Input your DC fast charger stop as a navigation destination before departure — battery preconditioning activates automatically for maximum 320–370 kW charge speed
- Install 19.2 kW home charger: Unlocks the full home charging speed — fills P6 in ~5 hours, P12 in ~7 hours; requires dedicated 100-amp circuit
- Use native NACS for Superchargers: No adapter needed — the EX60’s native NACS port gives direct Supercharger V3 and V4 access across Tesla’s 20,000+ U.S. network
Conclusion
The Volvo EX60 battery is a major step forward for the company. It uses three battery sizes—80, 91, and 112 kWh—built on a new 800-volt “cell-to-body” platform. This design helps the car drive between 385 and 503 miles on a single charge. The car also charges very quickly, going from nearly empty to full in just 18 to 19 minutes.
The P12 model sets a new company record with a 503-mile range. Volvo also includes advanced features like “megacasting,” which simplifies the car’s construction, and “native NACS,” which makes it easy to use popular fast-charging stations. By combining these new technologies with Volvo’s famous safety systems, the EX60 sets a high standard for electric SUVs.
If you are interested in a smaller coupe-style SUV, please check out our separate guide for the Volvo EC40.
